ALGO Full Kit DIY

Sold out £207.50


All knobs and no menus, an FM synth engine with hands-on control



ALGO's four oscillators can be configured in series or parallel combinations, to create Complex FM or additive sound textures.
A unique Algorithm Display indicates the signal flow from one oscillator to another - easy to understand FM with pretty twinkly lights !

Each oscillator has controls for Level and Frequency, allowing easy adjustment of FM timbres, no menu diving snorkels needed.

Modulation inputs for Frequency or Level for each oscillator - patch in a couple of Envelopes, and you have an instant FM synth voice.




PLEASE NOTE THE KIT IS ONLY SUITABLE FOR EXPERIENCED BUILDERS.

WARNING:
To build the kit you MUST have the following:

-Two mini clamps
-Clean high quality 2/3mm tip solder iron [ chisel type recommended ]
- Mini Phillips screwdriver for M3 pan head screws
- Mini M2 hex head driver / allen key

The PCB is double sided, and any mistakes soldering some parts might be very difficult to fix later

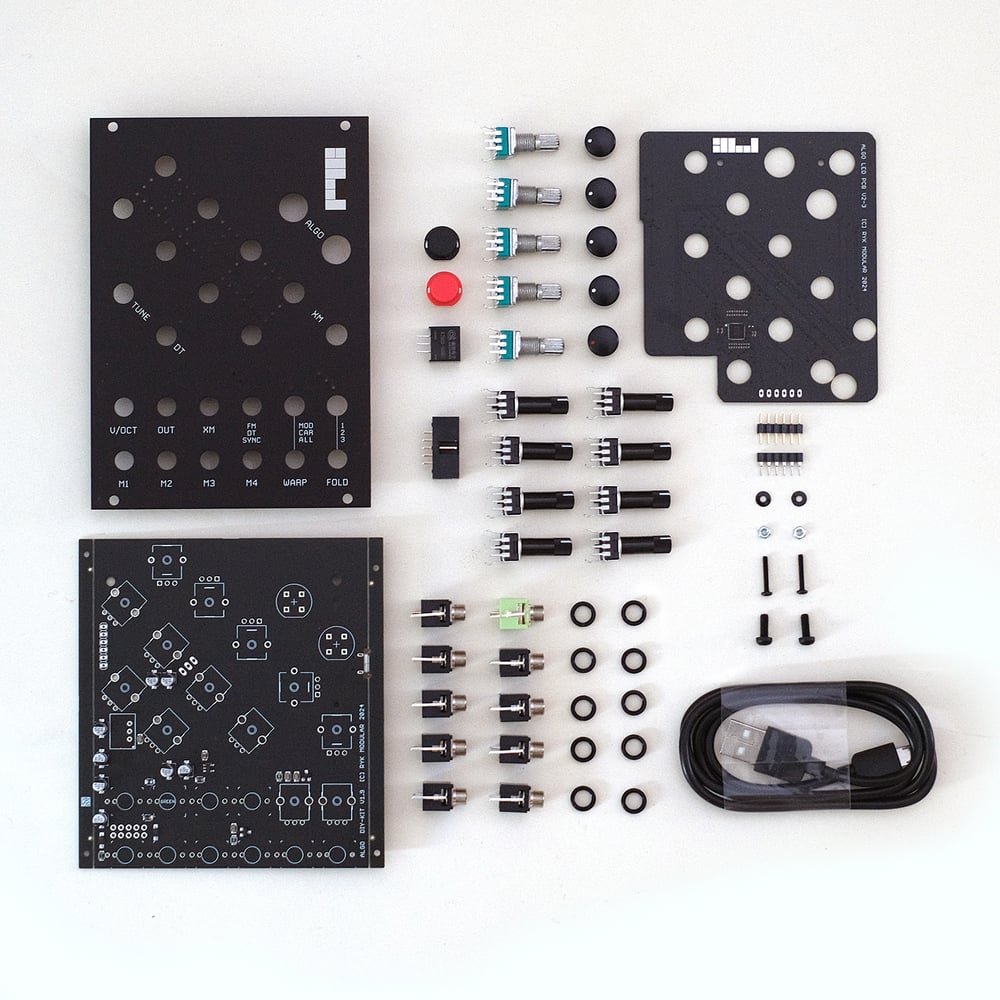

This is a complete kit for Eurorack, Including all parts:

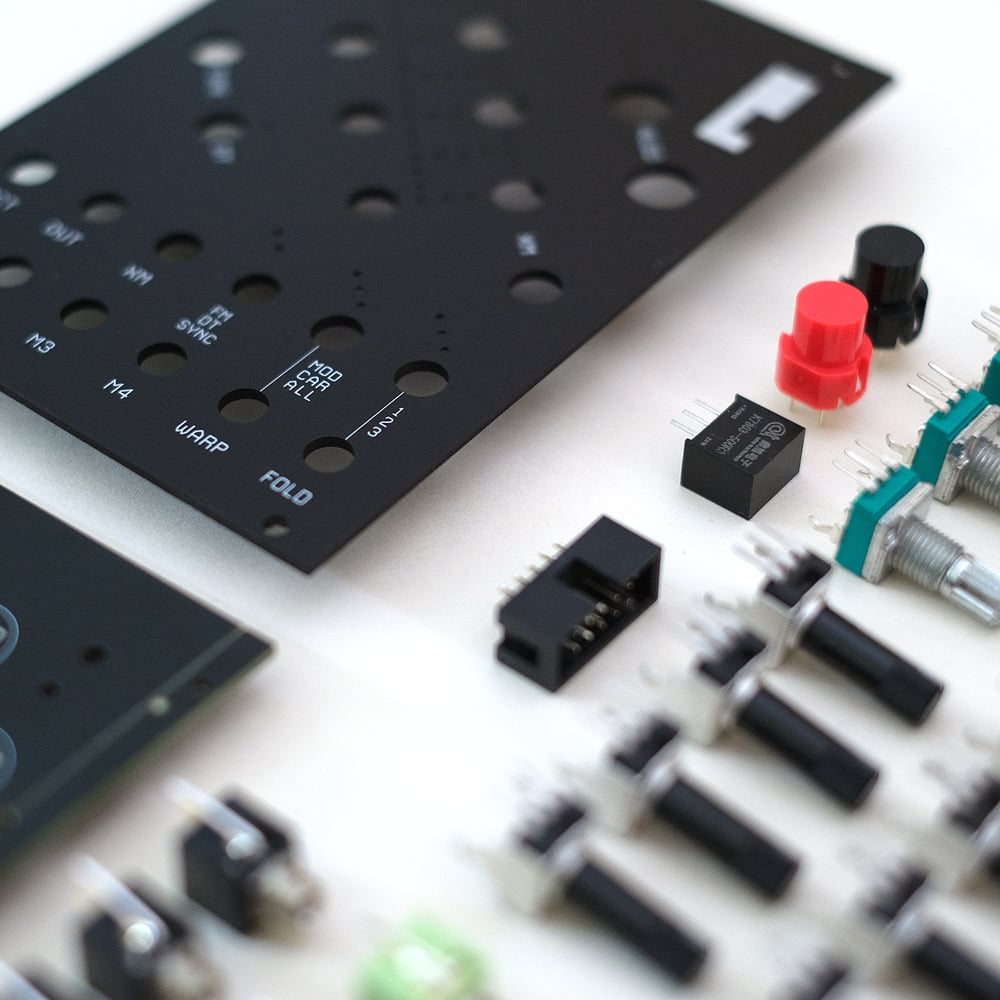

1xPCB (All SMD parts come already pre-soldered), a high quality screenprinted 2mm aluminium panel, encoders, knobs, switches, LED displays PCB, jack sockets, and all sundry components.
Includes USB data cable for firmware install, sexy black Eurorack power cable, RYK stereo splitter cable


TECHNICAL SPECIFICATIONS:

Frequency range
8hz - 35khz

Sampling frequency
85khz @ 2 x oversampled ( 170khz )

FEATURES:
Four through zero oscillators
Harmonic intervals, Fine tune, or Fixed frequency options for each oscillator
Amplitude OR Frequency/V/OCT CV inputs for each oscilator

9 FM algorithm combinations

Wave Shaping and three types of Wave folding

Multi Stage vari speed high quality chorus effect

Stereo output, with Pan control for each oscillator in the stereo field

Pretty lights !
