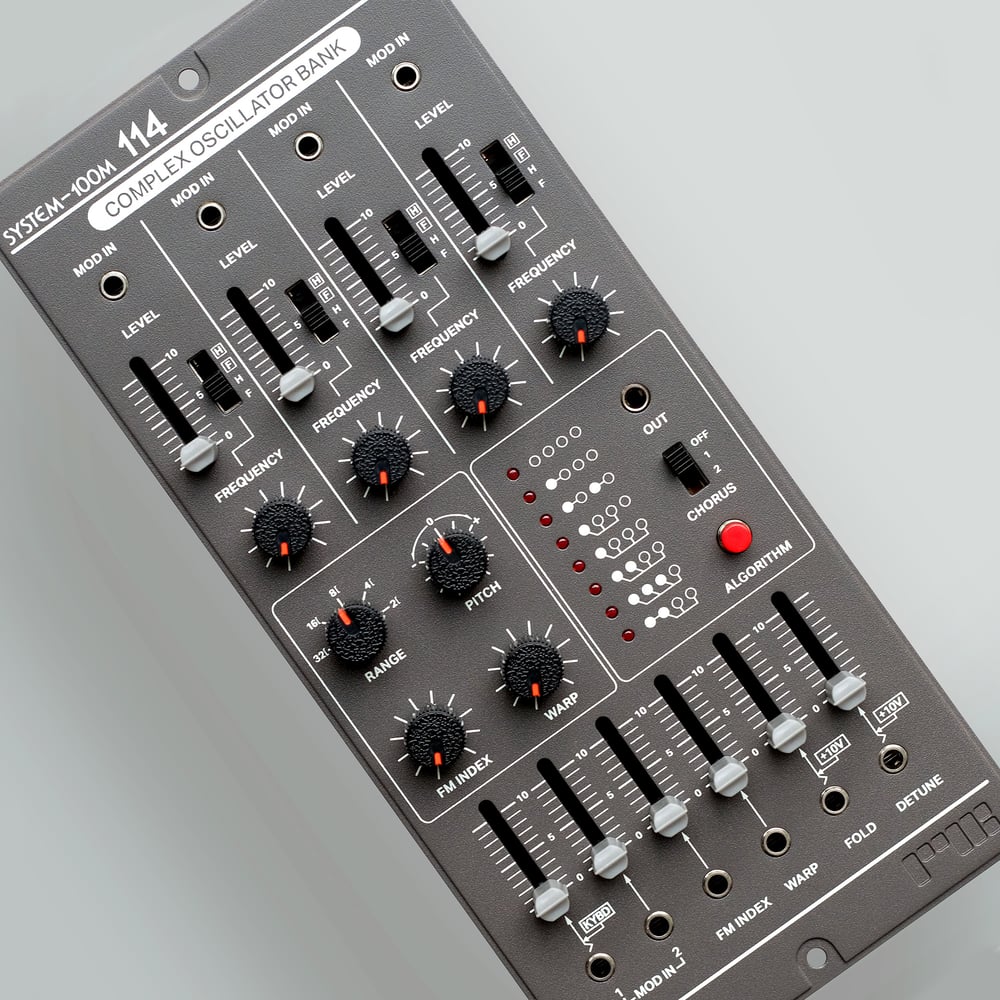

M114 SYSTEM 100M Complex Oscillator Bank

Four operator FM in an easy to use modular format

Introducing the M114 Complex Oscillator Bank from RYK Modular.

Four oscillators can be configured in series or parallel combinations, to create Complex FM or additive sound textures.
Eight selectable algorithms to enable setup of signal flow between oscillators.

Each oscillator has controls for Level and Frequency, allowing easy adjustment of FM timbres

Modulation inputs for Frequency or Level for each oscillator - patch in a couple of Envelopes, and you have an instant FM synth voice.

Wave Warp and Wave Fold can be applied to oscillators.

A Global Detune CV input for spreading out the oscillator tuning spacing, for big complex drone patches.

Stereo Output option for panning oscillators between Left and Right.

And, an onboard Stereo Chorus to add a vivacious 1980's shimmer to all your FM creations.

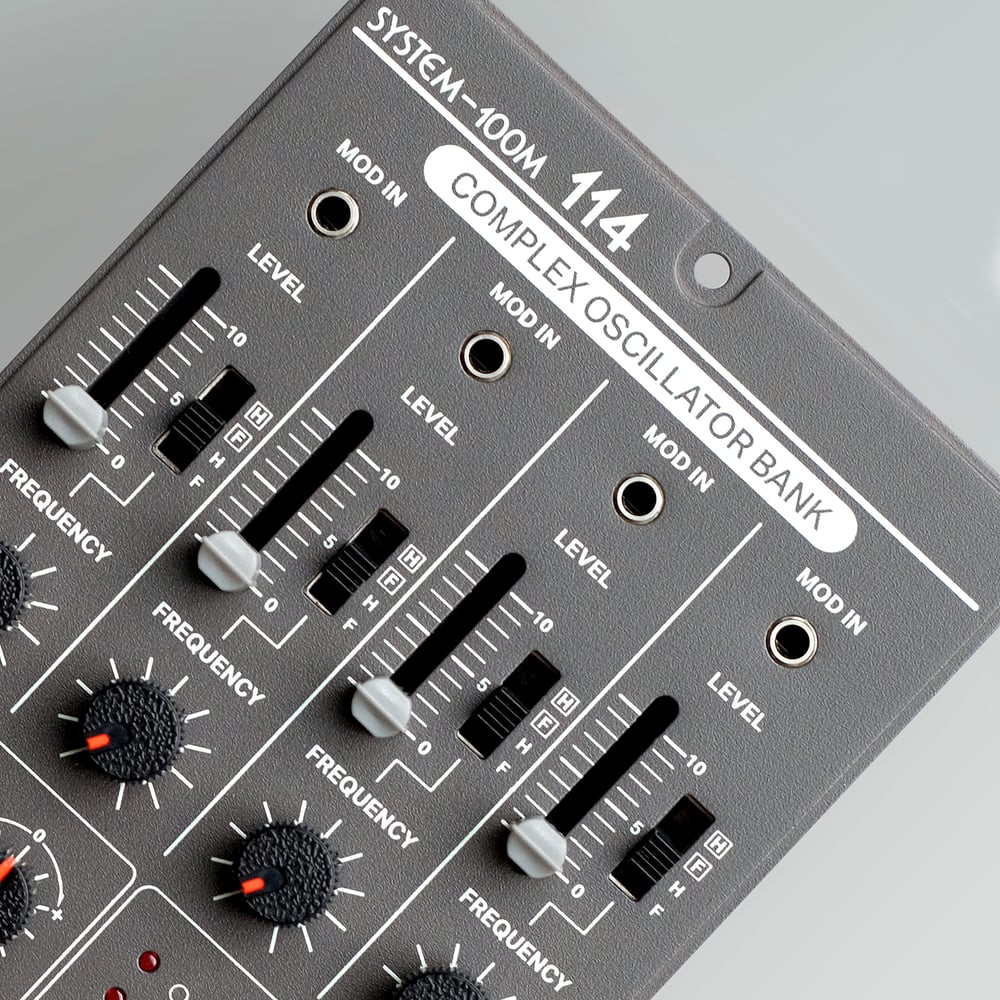

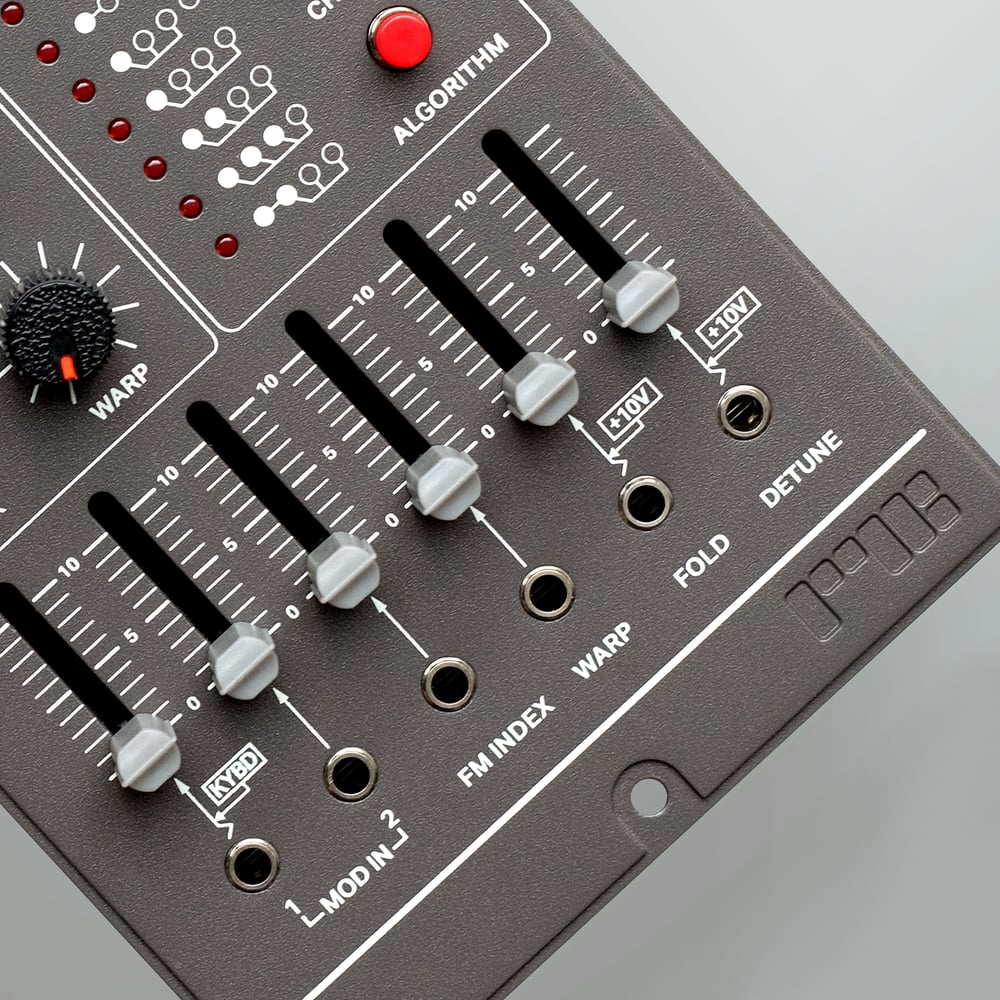

Authentic high quality reproduction of Roland System 100m panel, with 100m grey paint finish and 70's off white screen print.
