M175 SYSTEM 100M Triple Resonator

Sold out £537.50

Bringing the Lush 70's sound of Multiband Resonators to the System 100m

Introducing the new updated M175 Triple Resonator from RYK Modular.

Consisting of three resonant Band Pass Filters arranged in parallel, the M175 is great for adding some shape and character to a sound.

Use the triple peaks to add acoustic style resonant spikes, or modulate them to create dramatic phaser style swooshes and sweeps.

Or carefully tune the centre frequencies to create formant style vocal noises from waveforms with high harmonic content such as pulse waves.

The M175 contains three dual Vactrols to control the centre frequency of each resonator, which add a small amount of slew to the frequency modulation, famously associated with classic Buchla modules.


Three Vactrol controlled Band Pass Filters arranged in normalised parallel, or can be used as three separate filters.

Audio input signal is normalised to all three resonators, but can be overridden by inserting a jack into the resonators 1st inputs allow them to be used separately.

A mix output is available that sums the output of all three resonators, by inserting a jack into a resonators individual output overrides its output from the mix output.

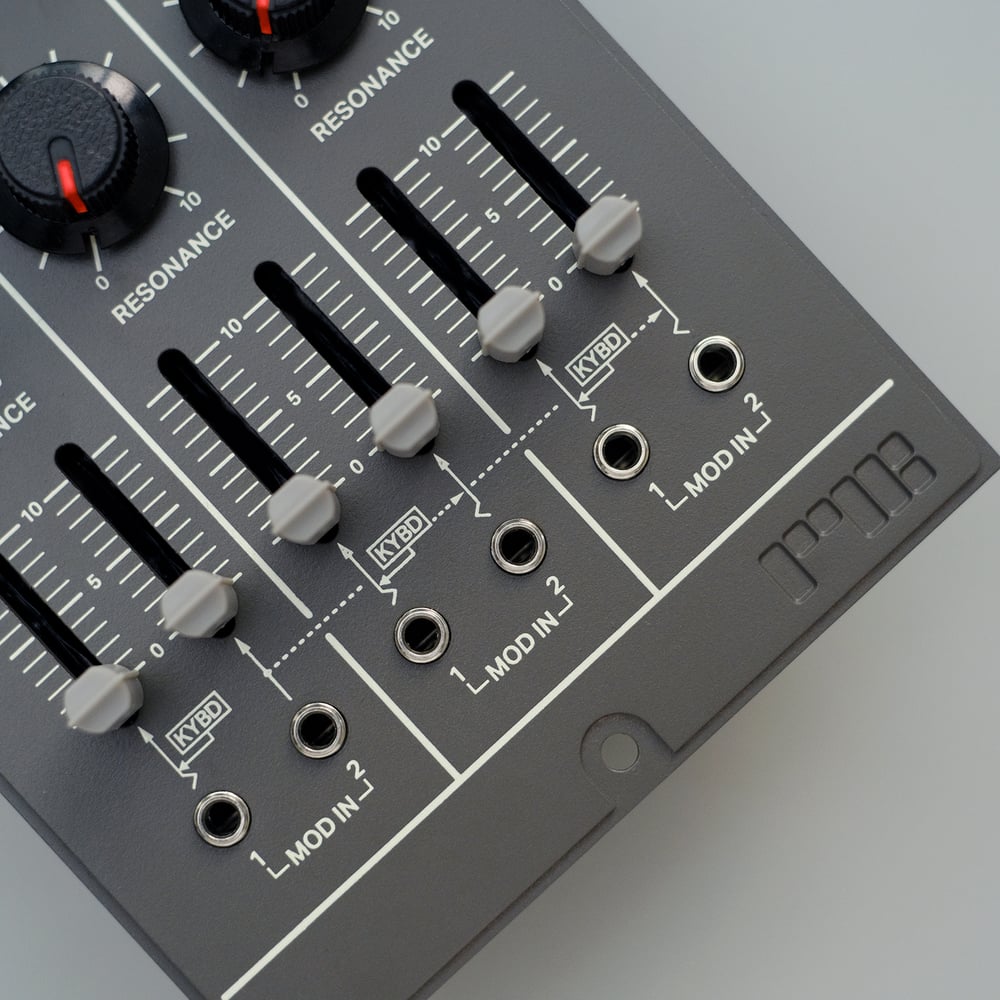

Keyboard CV is supplied via the standard System 100m DIN connector, to the 1st modulation input of each resonator.

The 2nd input of the first resonator is normalised to each of the other two resonators

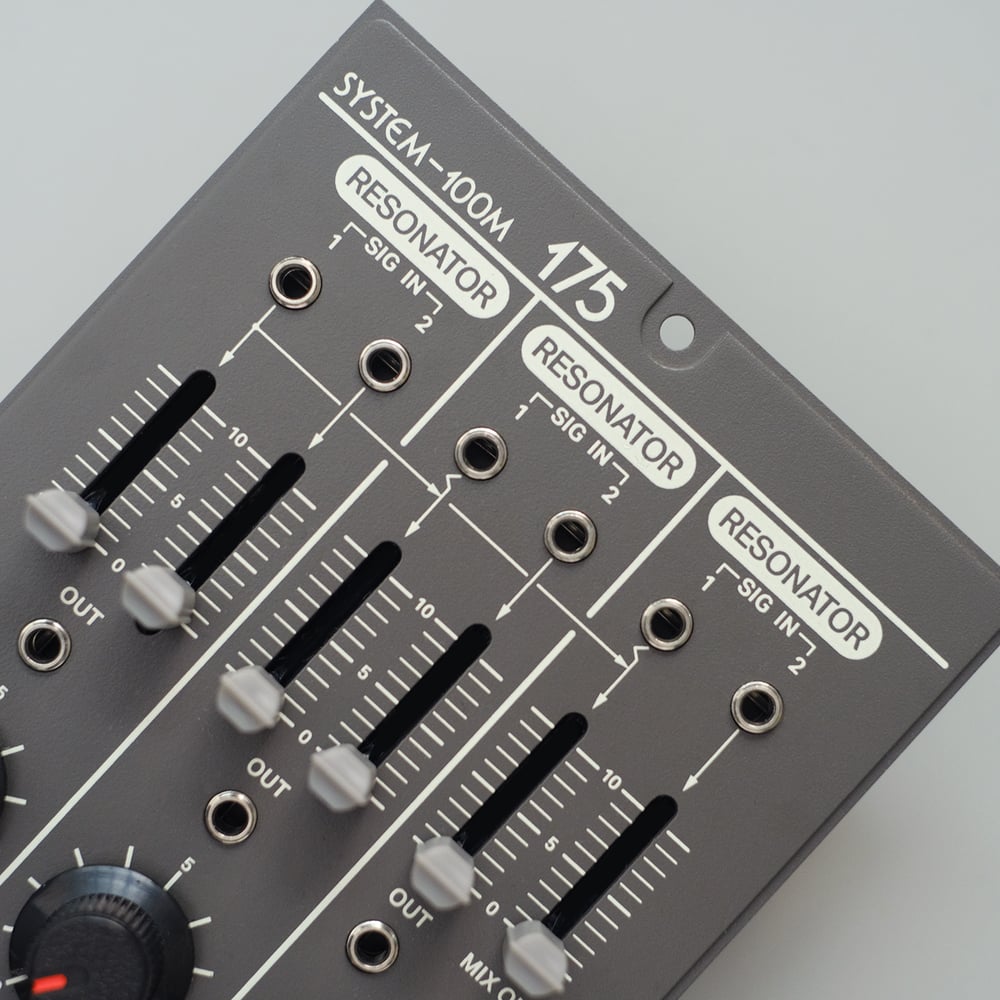

Authentic high quality reproduction of Roland System 100m panel, with 100m grey paint finish and 70's off white screen print.
